84355AK3 On-ground luminaire, silver
slide 2 of 3
slide 1 to 3 of 3
Product information "84355AK3 On-ground luminaire, silver"
Luminaire for glare-free illumination of floor surfaces from an extremely low mounting height. For the illumination of forecourts, gateways and ways in private and public facilities. Single side light exit 180°. With mounting plate for bolting onto a foundation or onto a connecting housing which has to be ordered separately. Built-in LED power supply unit DALI controllable. With integrated water stop and connecting cable.
Manufacturer: BEGA
Material: cast aluminium, aluminium and stainless steel, BEGA Unidure ® coating technology, colour silver, crystal glass, optical silicone lens, BEGA Hybrid Optics®

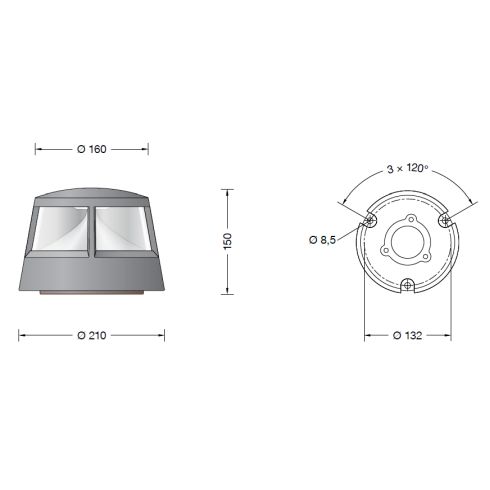

Dimensions (mm): Ø 160/210 x 150
Illuminant: 13.8W LED 3000K
Luminous flux (Lumen): 604
Scope of delivery: incl. illuminant
Delivery time: 1 Week
Manufacturer: BEGA
Material: cast aluminium, aluminium and stainless steel, BEGA Unidure ® coating technology, colour silver, crystal glass, optical silicone lens, BEGA Hybrid Optics®
Dimensions (mm): Ø 160/210 x 150
Illuminant: 13.8W LED 3000K
Luminous flux (Lumen): 604
Scope of delivery: incl. illuminant
Delivery time: 1 Week
Properties "84355AK3 On-ground luminaire, silver"
| Color: | matt chrome / matt aluminium / matt nickel / matt silver / white aluminium / grey |
|---|---|
| Color rendering level: | 1B |
| Lichtfarbe: | warm white |
| Light distribution: | Ground luminaire - Orientation light semicircular |
| Protection class: | IP 67 |
| certifikation mark: | ENEC |
| energy efficiency class: | B |
Login
Zubehör
slide 1 of 1
%
Accessory - 71246 Connection housing
€110.00*
€118.76*
(7.38% saved)
Connection housing for the installation of on-ground luminaires on unpaved surfaces. The internal diameter of the connection housing is dimensioned such that the cable transition between an underground cable and the luminaire power supply cable can be carried out using BEGA distribution box 70730. Lateral cable entry 70 x 30mm, 3 threaded inserts with mounting bolts M8 x 25 made of stainless steel, pitch circle diameter 132mm, 3 threaded inserts with mounting bolts M6 x 25 made of stainless steel, pitch circle diameter 70mm. Manufacturer: BEGAMaterial: connection housing and adapter plate made of steel, hot-dip galvanisedDimensions (mm): Ø 160 x 275, base 165 x 165Delivery time: 2 Weeks
