Accessory - 71246 Connection housing
Product information "Accessory - 71246 Connection housing"

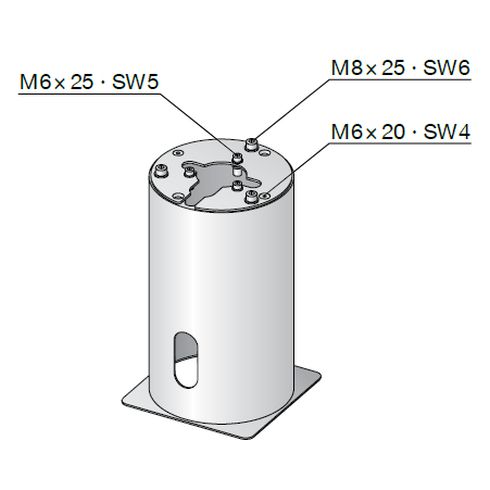

Connection housing for the installation of on-ground luminaires on unpaved surfaces. The internal diameter of the connection housing is dimensioned such that the cable transition between an underground cable and the luminaire power supply cable can be carried out using BEGA distribution box 70730. Lateral cable entry 70 x 30mm, 3 threaded inserts with mounting bolts M8 x 25 made of stainless steel, pitch circle diameter 132mm, 3 threaded inserts with mounting bolts M6 x 25 made of stainless steel, pitch circle diameter 70mm.
Manufacturer: BEGA
Material: connection housing and adapter plate made of steel, hot-dip galvanised

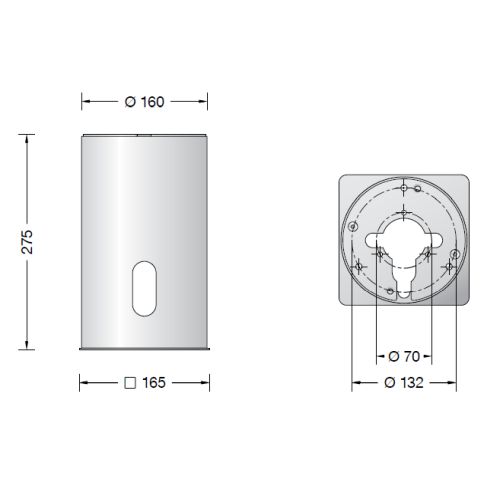

Dimensions (mm): Ø 160 x 275, base 165 x 165
Delivery time: 2 Weeks
Manufacturer: BEGA
Material: connection housing and adapter plate made of steel, hot-dip galvanised
Dimensions (mm): Ø 160 x 275, base 165 x 165
Delivery time: 2 Weeks
Properties "Accessory - 71246 Connection housing"
| certifikation mark: | CE |
|---|
Login
Zubehör
%

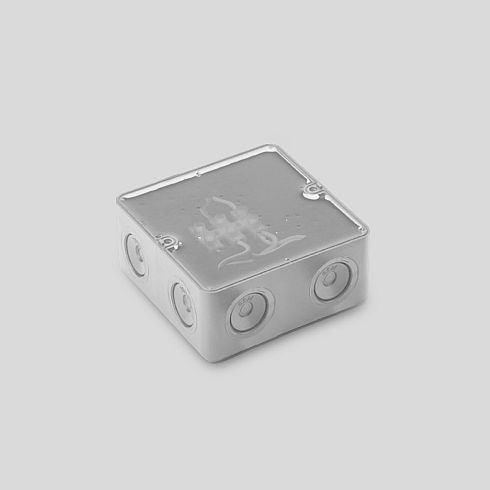

Accessory - 70730 Distribution box
