Advantages of track lighting
The classic ERCO busbar system offers you decisive advantages. If the furnishings or purpose of the room change, the lights can be easily repositioned. If necessary, additional lights can be added to the existing lighting system or lights that have become unnecessary can be removed. The busbar system itself can be easily expanded at any time. This means that the tracks are more than just a power supply, because they offer a flexible infrastructure for luminaires with different lighting properties that can be easily replaced or relocated. A variety of spotlights, floodlights, pendant lights or room lights are available for the lighting systems. With these various lighting tools it is possible to fulfill practically all lighting tasks in the room. Depending on the rail system, installation can be carried out directly on or in the ceiling, suspended or even on walls.
Mechanical accessory for ERCO tracks.Load 20kg. Length 10m. Manufacturer: ERCOMaterial: steelDimensions (mm): length 10000, Ø 1.75Delivery time: 2 Weeks

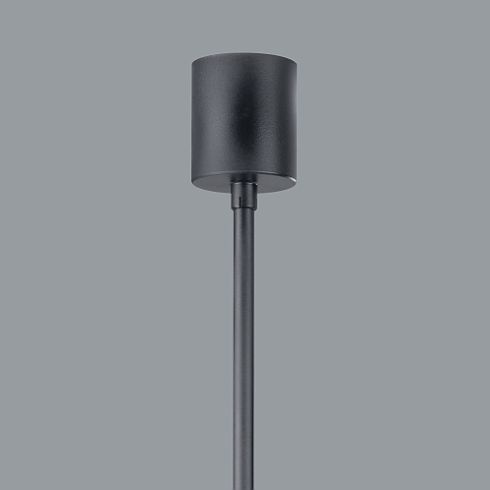

Mechanical accessory for ERCO tracks.Max. load 20kg.Can only be used in combination with: 78670.000, 79550.000, 79555.000, 79560.000, 79565.000, 79570.000 Manufacturer: ERCOMaterial: pendant tube metal, black powder-coatedDimensions (mm): pendant tube Ø 13 x 1040, canopy Ø 64 x height 73Delivery time: 2 Weeks

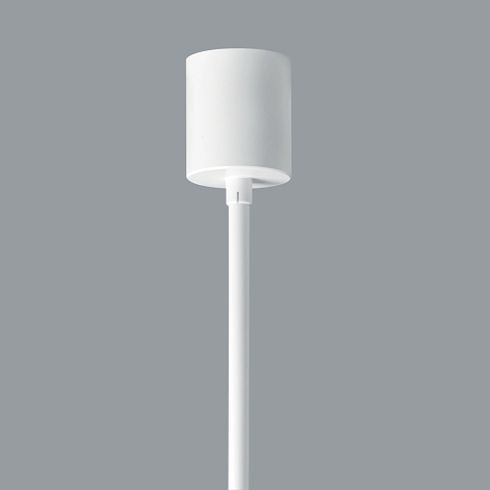

Mechanical accessory for ERCO tracks.Max. load 20kg.Can only be used in combination with: 78671.000, 79551.000, 79556.000, 79561.000, 79566.000, 79571.000 Manufacturer: ERCOMaterial: pendant tube metal, white powder-coatedDimensions (mm): pendant tube Ø 13 x 1040, canopy Ø 64 x height 73Delivery time: 2 Weeks

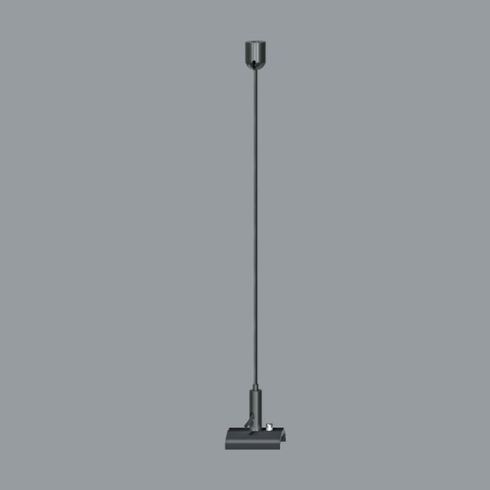

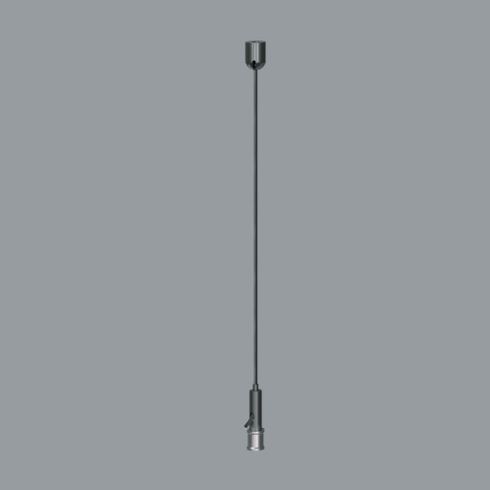

Mechanical accessory for ERCO tracks.With rapid wire connector for height compensation. Fastening clip for retrofitting to ERCO tracks. Also suitable for sloping ceilings. Max. load 20kg. Manufacturer: ERCOMaterial: 1-point fixing brass, blackDimensions (mm): wire rope Ø 1.5 x length 2500, 1-point fixing Ø 15 x height 21Delivery time: 2 Weeks

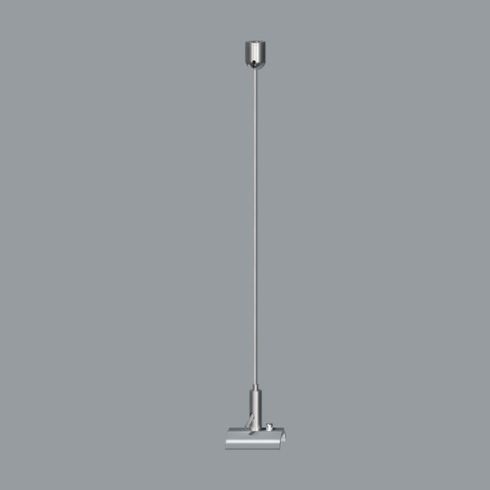

Mechanical accessory for ERCO tracks.With rapid wire connector for height compensation. Fastening clip for retrofitting to ERCO tracks. Also suitable for sloping ceilings. Max. load 20kg. Manufacturer: ERCOMaterial: 1-point fixing brass, nickel-platedDimensions (mm): wire rope Ø 1.5 x length 2500, 1-point fixing Ø 15 x height 21Delivery time: 2 Weeks

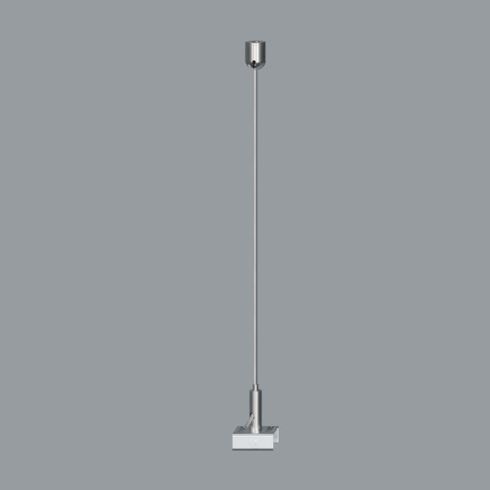

Mechanical accessory for ERCO tracks.With rapid wire connector for height compensation. Mounting piece for mounting on ERCO tracks. Also suitable for sloping ceilings. Max. load 20kg. Manufacturer: ERCOMaterial: 1-point fixing brass, nickel-platedDimensions (mm): wire rope Ø 1.5 x length 2500, 1-point fixing Ø 15 x height 21Delivery time: 2 Weeks
Mechanical accessory for ERCO tracks.With rapid wire connector for height compensation. Mounting piece for mounting on ERCO tracks. Also suitable for sloping ceilings. Max. load 20kg. Manufacturer: ERCOMaterial: 1-point fixing brass, blackDimensions (mm): wire rope Ø 1.5 x length 2500, 1-point fixing Ø 15 x height 21Delivery time: 2 Weeks

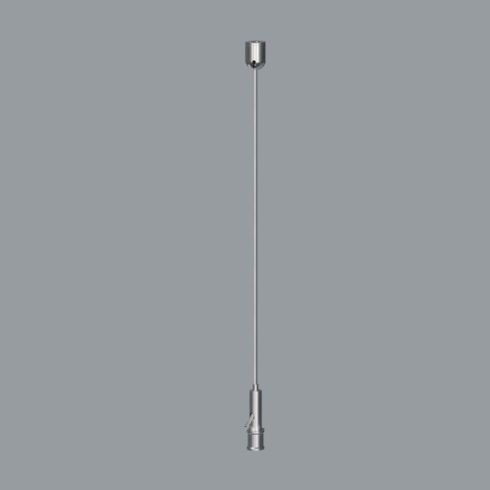

Mechanical accessory for ERCO tracks.With rapid connector for adjustment levelling. Max. load 20kg.Can only be used in combination with: 78671.000, 79551.000, 79556.000, 79561.000, 79566.000, 79571.000 Manufacturer: ERCOMaterial: 1-point fixing brass, nickel-platedDimensions (mm): wire rope Ø 1.5 x length 2500, 1-point fixing Ø 15 x height 19Delivery time: 2 Weeks
Mechanical accessory for ERCO tracks.With rapid connector for adjustment levelling. Max. load 20kg.Can only be used in combination with: 78670.000, 79550.000, 79555.000, 79560.000, 79565.000, 79570.000 Manufacturer: ERCOMaterial: 1-point fixing brass, blackDimensions (mm): wire rope Ø 1.5 x length 2500, 1-point fixing Ø 15 x height 19Delivery time: 2 Weeks

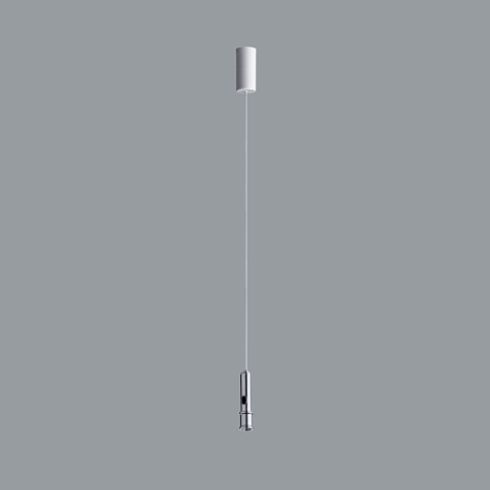

Mechanical accessory for ERCO tracks.With single-point fixing and rapid connector for adjustment levelling. Max. load 20kg (with heavy load dowel).Can only be used in combination with: 78671.000, 79551.000, 79556.000, 79561.000, 79566.000, 79571.000 as well as 78670.000, 79550.000, 79555.000, 79560.000, 79565.000, 79570.000 Manufacturer: ERCOMaterial: rapid connector metal, ceiling fixture made of cast aluminium and metal, white powder-coatedDimensions (mm): wire rope Ø 1.50 x length 2500, ceiling fixture Ø 18 x height 49Delivery time: 2 Weeks

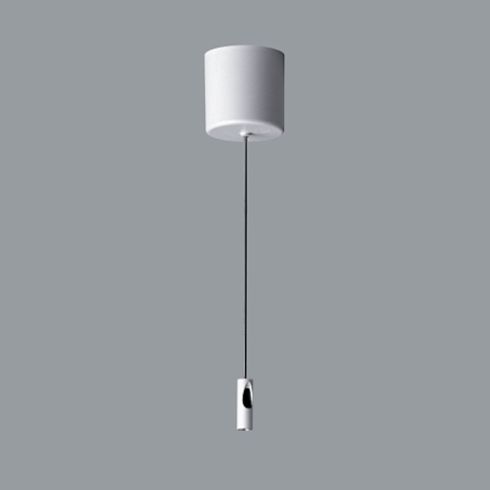

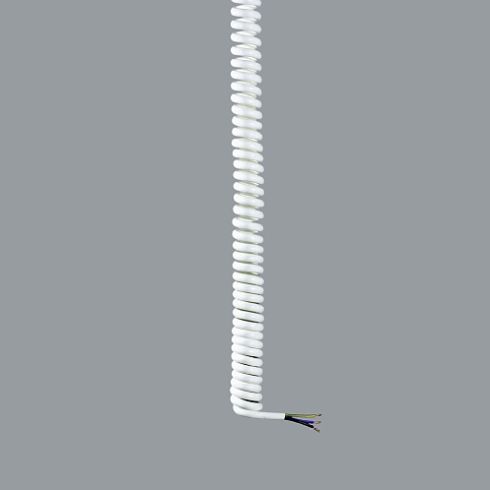

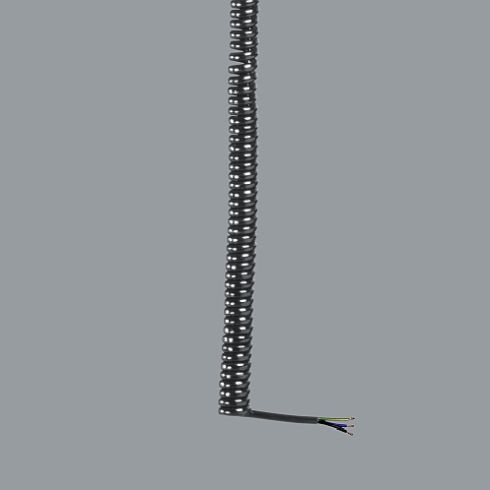

Mechanical accessory for ERCO tracks.Cable entry for 3x1.5mm² polymer-coated cable or spiral cable. Strain relief. Terminal block. Max. load 20kg.Can only be used in combination with: 78671.000, 79551.000, 79556.000, 79561.000, 79566.000, 79571.000 Manufacturer: ERCOMaterial: mounting bush metal, canopy polymer, whiteDimensions (mm): wire rope Ø 1.50 x length 2500, canopy Ø 65 x height 63Delivery time: 2 Weeks

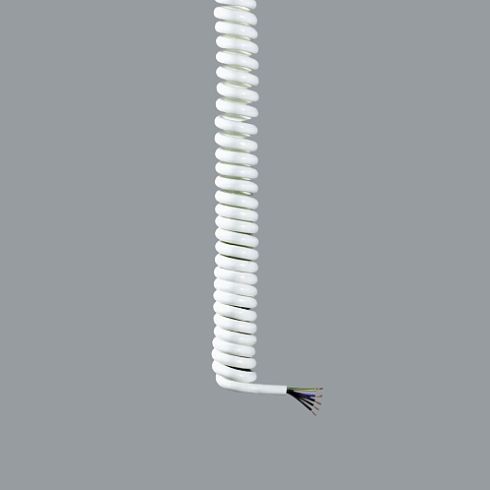

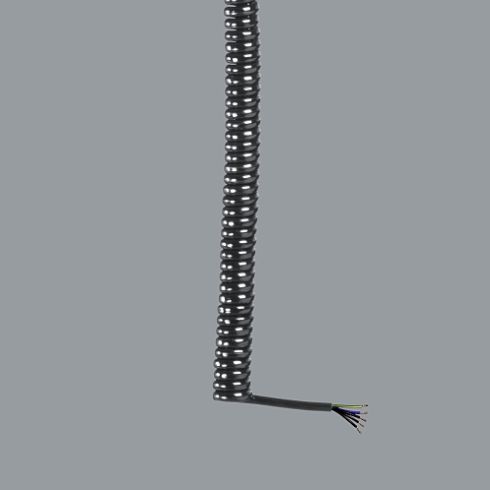

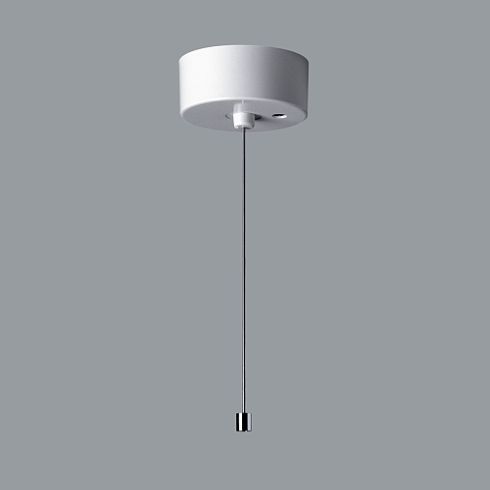

Mechanical accessory for ERCO tracks.Cable entry for 5x1.5mm² polymer-coated cable or spiral cable. Strain relief. Terminal block. Max. load 20kg.Can only be used in combination with: 78671.000, 79551.000, 79556.000, 79561.000, 79566.000, 79571.000 Manufacturer: ERCOMaterial: mounting bush metal, canopy polymer, whiteDimensions (mm): wire rope Ø 1.50 x length 2500, canopy Ø 105 x height 43Delivery time: 2 Weeks
For mounting on spotlights with DALI control gear. With M16x1 thread for spotlights, 240V, 1A.Polymer. Strain relief.Connection cable, 5x0.75mm², L 300mm.DALI protection device enclosed: fuse 6.3x32; FF 315mA 700V.Max. load 5kg.
Max. load 60kg.Can only be used in combination with: 12440.000 (wire rope) Manufacturer: ERCOMaterial: metal, galvanisedDelivery time: 2 Weeks

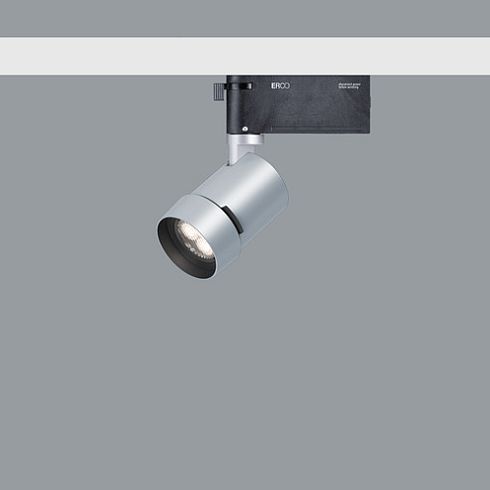

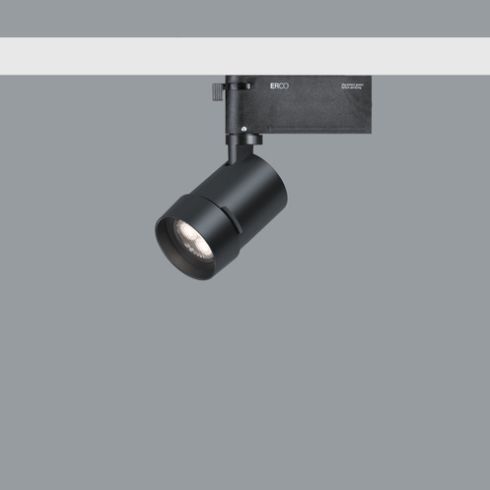

POLLUX - the compact spotlight for versatile use. The versatility of POLLUX, underwritten by its compact format, displays particular strengths in museums, shops, the catering industry or residential environments. 0°-90° tilt. Bracket on transadapter rotatable through 360°. Spherolit lens, flood. Wide beam, rotationally symmetrical light distribution for accent lighting, emphasis of objects or architectural elements.Integrated control gear, switchable. Manufacturer: ERCOMaterial: housing die cast aluminium black powder-coated, transadapter polymer black, collimating lens made of optical polymerDimensions (mm): spotlight height 137, luminaire head Ø 66 x 70Illuminant: 10W LED 3500KLuminous flux (Lumen): 1000Scope of delivery: incl. illuminantDelivery time: 4 Weeks

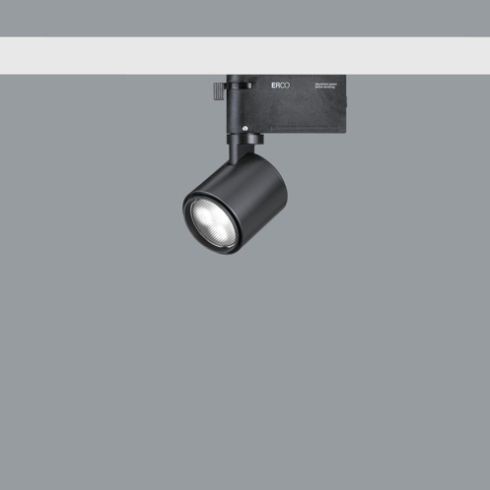

POLLUX - the compact spotlight for versatile use. The versatility of POLLUX, underwritten by its compact format, displays particular strengths in museums, shops, the catering industry or residential environments. 0°-90° tilt. Bracket on transadapter rotatable through 360°.Manually adjustable round light distribution for accenting to floodlighting. The light beam diameter can be infinitely adjusted from spot (15°) to wide flood (65°) by simply turning the lens. Zoom spotlights are particularly suitable for illuminating areas with changing exhibits and merchandise.Integrated control gear, dimmable with external trailing-edge dimmers. Potentiometer for brightness control 1-100%. Manufacturer: ERCOMaterial: housing and bracket cast aluminium silver powder-coated, transadapter black polymer, zoom attachment silver polymer, collimating lens made of optical polymerDimensions (mm): luminaire height 140, luminaire head Ø 72 x 111Illuminant: 10W LED 3000KLuminous flux (Lumen): 930Scope of delivery: incl. illuminantDelivery time: 4 Weeks
POLLUX - the compact spotlight for versatile use. The versatility of POLLUX, underwritten by its compact format, displays particular strengths in museums, shops, the catering industry or residential environments. 0°-90° tilt. Bracket on transadapter rotatable through 360°.Manually adjustable round light distribution for accenting to floodlighting. The light beam diameter can be infinitely adjusted from spot (15°) to wide flood (65°) by simply turning the lens. Zoom spotlights are particularly suitable for illuminating areas with changing exhibits and merchandise.Integrated control gear, dimmable with external trailing-edge dimmers. Potentiometer for brightness control 1-100%. Manufacturer: ERCOMaterial: housing and bracket cast aluminium black powder-coated, transadapter black polymer, zoom attachment black polymer, collimating lens made of optical polymerDimensions (mm): luminaire height 140, luminaire head Ø 72 x 111Illuminant: 10W LED 3000KLuminous flux (Lumen): 930Scope of delivery: incl. illuminantDelivery time: 4 Weeks
POLLUX - the compact spotlight for versatile use. The versatility of POLLUX, underwritten by its compact format, displays particular strengths in museums, shops, the catering industry or residential environments. 0°-90° tilt. Bracket on transadapter rotatable through 360°.Manually adjustable round light distribution for accenting to floodlighting. The light beam diameter can be infinitely adjusted from spot (15°) to wide flood (65°) by simply turning the lens. Zoom spotlights are particularly suitable for illuminating areas with changing exhibits and merchandise.Integrated control gear, DALI controllable. Manufacturer: ERCOMaterial: housing and bracket cast aluminium black powder-coated, transadapter black polymer, zoom attachment black polymer, collimating lens made of optical polymerDimensions (mm): luminaire height 140, luminaire head Ø 72 x 111Illuminant: 10W LED 3000KLuminous flux (Lumen): 930Scope of delivery: incl. illuminantDelivery time: 4 Weeks
POLLUX - the compact spotlight for versatile use. The versatility of POLLUX, underwritten by its compact format, displays particular strengths in museums, shops, the catering industry or residential environments. 0°-90° tilt. Bracket on transadapter rotatable through 360°.Manually adjustable round light distribution for accenting to floodlighting. The light beam diameter can be infinitely adjusted from spot (15°) to wide flood (65°) by simply turning the lens. Zoom spotlights are particularly suitable for illuminating areas with changing exhibits and merchandise.Integrated control gear, DALI controllable. Manufacturer: ERCOMaterial: housing and bracket cast aluminium silver powder-coated, transadapter black polymer, zoom attachment silver polymer, collimating lens made of optical polymerDimensions (mm): luminaire height 140, luminaire head Ø 72 x 111Illuminant: 10W LED 3000KLuminous flux (Lumen): 930Scope of delivery: incl. illuminantDelivery time: 4 Weeks
POLLUX - the compact spotlight for versatile use. The versatility of POLLUX, underwritten by its compact format, displays particular strengths in museums, shops, the catering industry or residential environments. 0°-90° tilt. Bracket on transadapter rotatable through 360°.Manually adjustable oval light distribution for accenting to floodlighting. The light beam diameter can be infinitely adjusted from spot (15°) to wide flood (65°) by simply turning the lens. Zoom spotlights are particularly suitable for illuminating areas with changing exhibits and merchandise.Integrated control gear, dimmable with external trailing-edge dimmers. Potentiometer for brightness control 1-100%. Manufacturer: ERCOMaterial: housing and bracket cast aluminium silver powder-coated, transadapter black polymer, zoom attachment silver polymer, collimating lens made of optical polymerDimensions (mm): luminaire height 140, luminaire head Ø 72 x 111Illuminant: 10W LED 3000KLuminous flux (Lumen): 930Scope of delivery: incl. illuminantDelivery time: 4 Weeks
POLLUX - the compact spotlight for versatile use. The versatility of POLLUX, underwritten by its compact format, displays particular strengths in museums, shops, the catering industry or residential environments. 0°-90° tilt. Bracket on transadapter rotatable through 360°.Manually adjustable oval light distribution for accenting to floodlighting. The light beam diameter can be infinitely adjusted from spot (15°) to wide flood (65°) by simply turning the lens. Zoom spotlights are particularly suitable for illuminating areas with changing exhibits and merchandise.Integrated control gear, dimmable with external trailing-edge dimmers. Potentiometer for brightness control 1-100%. Manufacturer: ERCOMaterial: housing and bracket cast aluminium black powder-coated, transadapter black polymer, zoom attachment black polymer, collimating lens made of optical polymerDimensions (mm): luminaire height 140, luminaire head Ø 72 x 111Illuminant: 10W LED 3000KLuminous flux (Lumen): 930Scope of delivery: incl. illuminantDelivery time: 4 Weeks
POLLUX - the compact spotlight for versatile use. The versatility of POLLUX, underwritten by its compact format, displays particular strengths in museums, shops, the catering industry or residential environments. 0°-90° tilt. Bracket on transadapter rotatable through 360°.Manually adjustable oval light distribution for accenting to floodlighting. The light beam diameter can be infinitely adjusted from spot (15°) to wide flood (65°) by simply turning the lens. Zoom spotlights are particularly suitable for illuminating areas with changing exhibits and merchandise.Integrated control gear, DALI controllable. Manufacturer: ERCOMaterial: housing and bracket cast aluminium silver powder-coated, transadapter black polymer, zoom attachment silver polymer, collimating lens made of optical polymerDimensions (mm): luminaire height 140, luminaire head Ø 72 x 111Illuminant: 10W LED 3000KLuminous flux (Lumen): 930Scope of delivery: incl. illuminantDelivery time: 4 Weeks
POLLUX - the compact spotlight for versatile use. The versatility of POLLUX, underwritten by its compact format, displays particular strengths in museums, shops, the catering industry or residential environments. 0°-90° tilt. Bracket on transadapter rotatable through 360°.Manually adjustable oval light distribution for accenting to floodlighting. The light beam diameter can be infinitely adjusted from spot (15°) to wide flood (65°) by simply turning the lens. Zoom spotlights are particularly suitable for illuminating areas with changing exhibits and merchandise.Integrated control gear, DALI controllable. Manufacturer: ERCOMaterial: housing and bracket cast aluminium black powder-coated, transadapter black polymer, zoom attachment black polymer, collimating lens made of optical polymerDimensions (mm): luminaire height 140, luminaire head Ø 72 x 111Illuminant: 10W LED 3000KLuminous flux (Lumen): 930Scope of delivery: incl. illuminantDelivery time: 4 Weeks
POLLUX - the compact spotlight for versatile use. The versatility of POLLUX, underwritten by its compact format, displays particular strengths in museums, shops, the catering industry or residential environments. 0°-90° tilt. Bracket on transadapter rotatable through 360°.Manually adjustable round light distribution for accenting to floodlighting. The light beam diameter can be infinitely adjusted from spot (15°) to wide flood (65°) by simply turning the lens. Zoom spotlights are particularly suitable for illuminating areas with changing exhibits and merchandise.Integrated control gear, dimmable with external trailing-edge dimmers. Potentiometer for brightness control 1-100%. Manufacturer: ERCOMaterial: housing and bracket cast aluminium black powder-coated, transadapter black polymer, zoom attachment black polymer, collimating lens made of optical polymerDimensions (mm): luminaire height 140, luminaire head Ø 72 x 111Illuminant: 10W LED 2700KLuminous flux (Lumen): 860Scope of delivery: incl. illuminantDelivery time: 4 Weeks
