Accessory - 13500 Installation housing
Product information "Accessory - 13500 Installation housing"

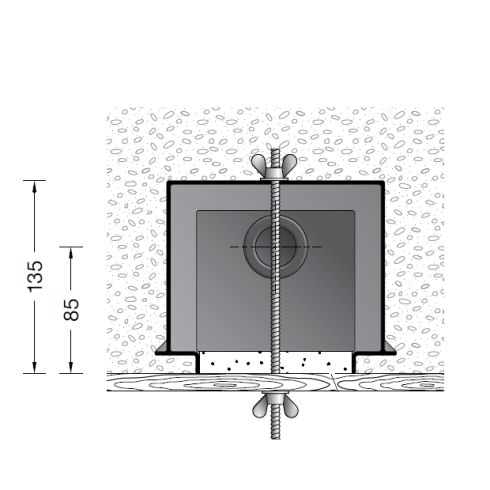

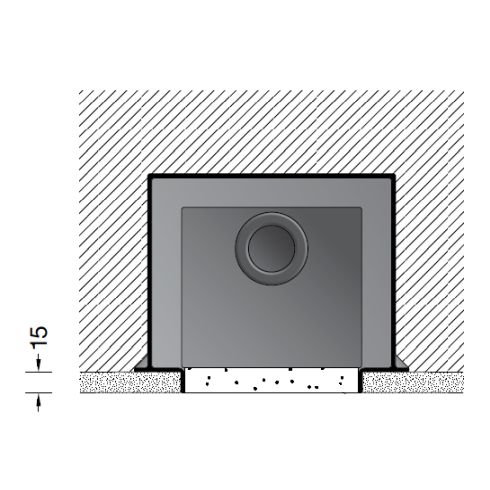

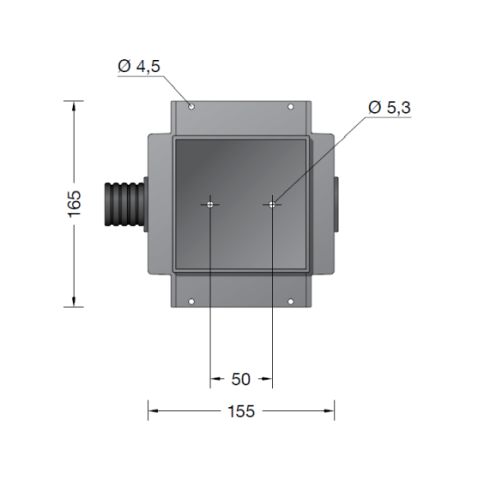

Installation housing for mounting recessed ceiling luminaires in concrete ceilings. Recess opening 105 x 105mm. Four holes ø 4.5 mm. Two holes ø 5.3mm and two threaded rod with wing screws for fixing at the sheeting. Two opposite entries for installation conduits, max ø 30mm. Centre-plate made of styrofoam with two fixing holes ø 5mm to calibrate the position.
Manufacturer: BEGA
Material: aluminium, glass fiber reinforced synthetic
material
Dimensions (mm): 165 x 155 x 135
Delivery time: 2 Weeks
Manufacturer: BEGA
Material: aluminium, glass fiber reinforced synthetic
material
Dimensions (mm): 165 x 155 x 135
Delivery time: 2 Weeks
