99366K4 LED in-ground luminaire
Product information "99366K4 LED in-ground luminaire"

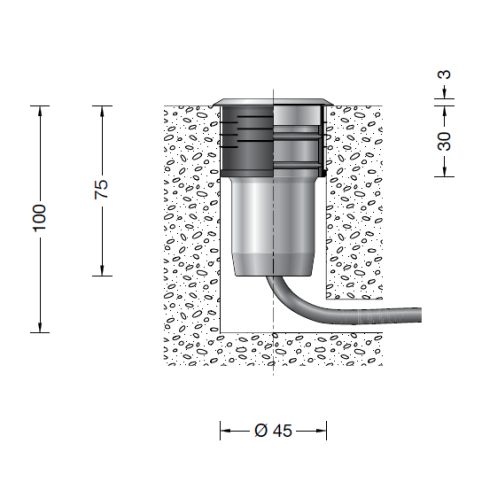

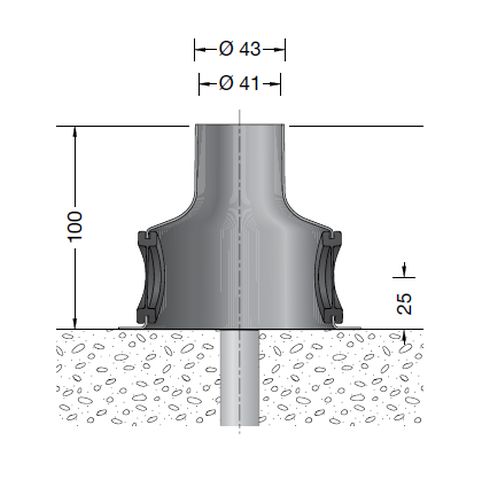

LED-Floodlight for recessed installation in compacted surfaces with ø 45 mm provided by the customer. Drive-over luminaire from vehicles with pneumatic tyres. For pressure load up to 1.000 kg. For the installation in drill holes a recess opening of ø 45 mm with a minimum recessing depth of 100 mm is necessary. Push recess sleeve into recess opening. For recessed installation in compacted surfaces a suitable installation housing - accessory 779 - can be ordered separately. For operation of the luminaires a separate power supply is required.
Manufacturer: BEGA
Material: stainless steel, clear safety glass, reflector made of anodised pure aluminium

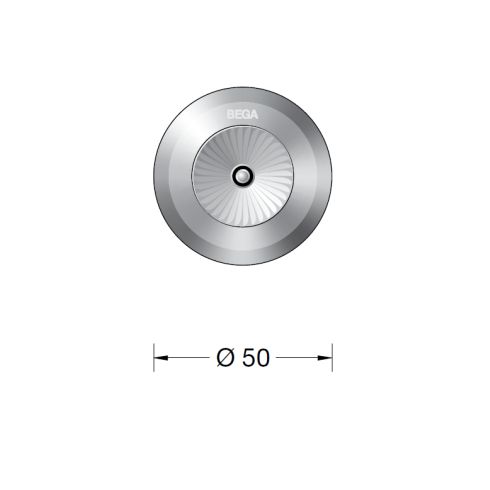

Dimensions (mm): Ø 50 x 3
Illuminant: 1.4W LED 4000K
Luminous flux (Lumen): 135
Scope of delivery: incl. illuminant
Delivery time: 1 Week
Manufacturer: BEGA
Material: stainless steel, clear safety glass, reflector made of anodised pure aluminium
Dimensions (mm): Ø 50 x 3
Illuminant: 1.4W LED 4000K
Luminous flux (Lumen): 135
Scope of delivery: incl. illuminant
Delivery time: 1 Week
Login
Zubehör
%
Accessory - 70779 Installation housing
€72.00*
€79.25*
(9.15% saved)
Installation housing made of stainless steel for drive-over in-ground luminaires for pressure loads up to 1.000 kg. The foundation of the installation housing must be carried on firm subsoil. To achieve an exact position and firm stability the installation housing must be fixed on the subsoil. Maximum drainage must be provided so that any ingressing surface water can drain out of the installation housing. The top edge of the installation housing must be flush with the ground surface. The conductor connection provided by the customer must be carried out in the corresponding protection class and safety class of the luminaire. Manufacturer: BEGAMaterial: stainless steelDimensions (mm): Ø 115 x 100Delivery time: 1 Week
%
Accessory - 70465 Power supply unit 10-25W for LED luminaires
€179.00*
€189.09*
(5.34% saved)
Suitable for LED luminaires made by manufacturers BEGA and Glashütte Limburg.Safety transformer according to DIN EN 61558/VDE 0570 Part 2-6; 230V~ 50-60 Hz/24 V DC. Encapsuled in cast resin. BEGA power supply units are also suitable for the operation of several LED luminaires. In this case, the maximum wattage of the power supply unit which amounts to 25 Watt must not exceeded. Manufacturer: BEGAMaterial: cast resin encapsulated versionDimensions (mm): 55 x 215 x 50Delivery time: 1 Week
