99327K4 LED in-ground location luminaire
Product information "99327K4 LED in-ground location luminaire"

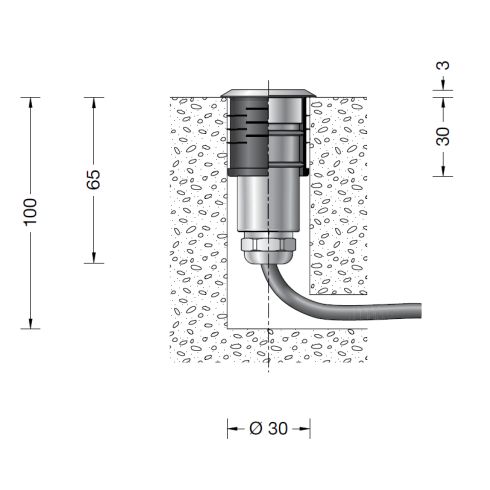

LED orientation luminaire for recessed installation in compacted surfaces with ø 30 mm provided by the customer. Drive-over luminaire from vehicles with pneumatic tyres. For pressure load up to 1.000 kg. For the installation in drill holes a recess opening of ø 30 mm with a minimum recessing depth of 100 mm is necessary. Push recess sleeve into recess opening. For recessed installation in compacted surfaces a suitable installation housing - accessory 778 - can be ordered separately.
Manufacturer: BEGA
Material: stainless steel, matt safety glass with optical texture

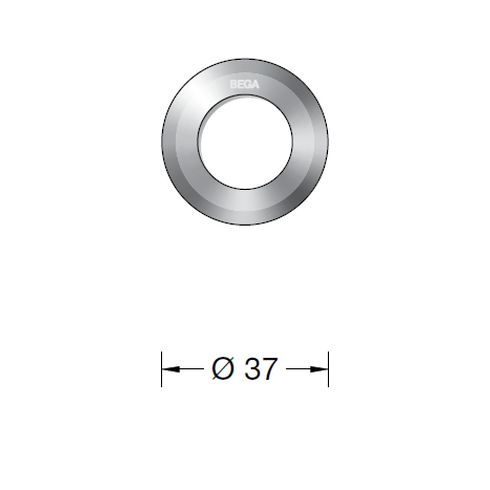

Dimensions (mm): Ø 37 x 3
Illuminant: 0.35W LED 4000K
Luminous flux (Lumen): 5
Scope of delivery: incl. illuminant
Delivery time: 1 Week
Manufacturer: BEGA
Material: stainless steel, matt safety glass with optical texture
Dimensions (mm): Ø 37 x 3
Illuminant: 0.35W LED 4000K
Luminous flux (Lumen): 5
Scope of delivery: incl. illuminant
Delivery time: 1 Week
Login
Zubehör
%
Accessory - 70465 Power supply unit 10-25W for LED luminaires
€179.00*
€189.09*
(5.34% saved)
Suitable for LED luminaires made by manufacturers BEGA and Glashütte Limburg.Safety transformer according to DIN EN 61558/VDE 0570 Part 2-6; 230V~ 50-60 Hz/24 V DC. Encapsuled in cast resin. BEGA power supply units are also suitable for the operation of several LED luminaires. In this case, the maximum wattage of the power supply unit which amounts to 25 Watt must not exceeded. Manufacturer: BEGAMaterial: cast resin encapsulated versionDimensions (mm): 55 x 215 x 50Delivery time: 1 Week
%
Accessory - 70778 Installation housing
€69.00*
€75.33*
(8.4% saved)

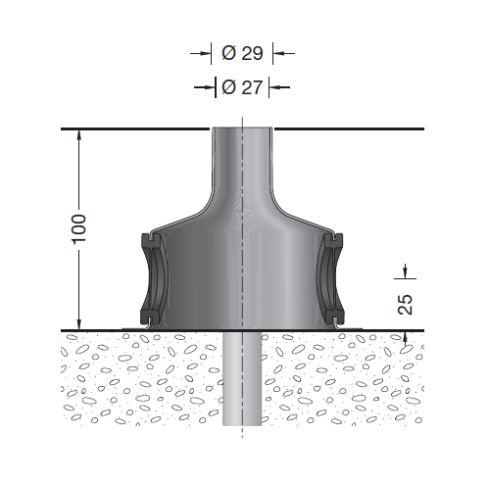

Installation housing made of stainless steel for drive-over in-ground luminaires for pressure loads up to 1.000 kg. The foundation of the installation housing must be carried on firm subsoil. To achieve an exact position and firm stability the installation housing must be fixed on the subsoil. Maximum drainage must be provided so that any ingressing surface water can drain out of the installation housing. The top edge of the installation housing must be flush with the ground surface. The conductor connection provided by the customer must be carried out in the corresponding protection class and safety class of the luminaire. Manufacturer: BEGAMaterial: stainless steelDimensions (mm): Ø 115 x 100Delivery time: 1 Week
