71653.000 PARSCAN black LED lens wallwasher for ERCO 3-circuit system

PARSCAN - elegant presence in museums and shops. Light, not luminaires - this is the foundation on which the sleek, cylindrical shape of Parscan is modelled. If the spotlight is directed vertically downwards as a downlight, the support bracket merges into the cylindrical shape. The excellent glare control enhances visual comfort even in challenging lighting situations. Displaying a minimalist design, the luminaire appears unobtrusive in museums, shops or places of worship. 0°-90° tilt. Bracket on transadapter rotatable through 360°. Spherolit lens, wallwash. Asymmetrical light distribution for highly uniform wallwashing. Vertical illuminance for brightening and dividing the space. Potentiometer for brightness control 1-100%. Dimming with external dimmers possible (trailing edge).
Manufacturer: ERCO
Labeling: if Product Design Award 2015, London Design Gold Award 2014, Good Design Award 2014
Material: housing die cast aluminium black powder-coated

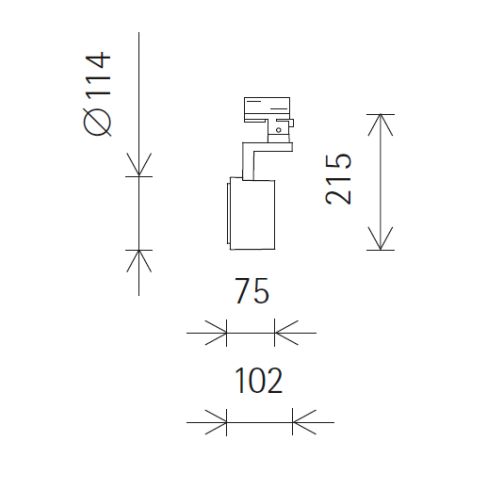

Dimensions (mm): spotlight height 215, luminaire head Ø 114 x 75
Illuminant: 12W LED 3000K
Luminous flux (Lumen): 1200
Scope of delivery: incl. illuminant
Delivery time: 4 Weeks
