35022.000 QUINTESSENCE Downlight
Product information "35022.000 QUINTESSENCE Downlight"
Square QUINTESSENCE LED downlight with covered mounting detail. Cut-off angle 40°. Diffuser lens extra wide flood. Incl. electronic control gear, dimmable with external trailing-edge dimmers. Wide rotationally symmetrical light distribution for general lighting. For flush ceiling mounting please order accessory 82920.000 - mounting frame - separately.
Manufacturer: ERCO
Labeling: Design Plus Award 2016
Material: housing cast aluminium, mounting frame polymer white, darklight reflector polymer, aluminium vaporised, silver mirror-finish, diffuser lens made of optical polymer

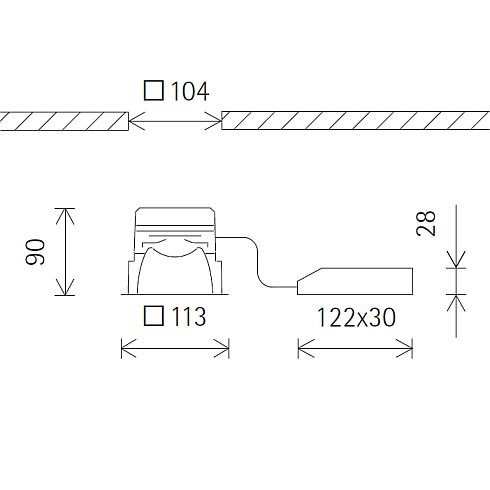

Dimensions (mm): 113 x 113 x 90, installation orifice 104 x 104
Illuminant: 12W LED 3000K
Luminous flux (Lumen): 1260
Scope of delivery: incl. illuminant
Delivery time: 2 Weeks
Manufacturer: ERCO
Labeling: Design Plus Award 2016
Material: housing cast aluminium, mounting frame polymer white, darklight reflector polymer, aluminium vaporised, silver mirror-finish, diffuser lens made of optical polymer
Dimensions (mm): 113 x 113 x 90, installation orifice 104 x 104
Illuminant: 12W LED 3000K
Luminous flux (Lumen): 1260
Scope of delivery: incl. illuminant
Delivery time: 2 Weeks
Properties "35022.000 QUINTESSENCE Downlight"
| Color: | white / satined |
|---|---|
| Color rendering level: | 1A |
| Lichtfarbe: | warm white |
| Light distribution: | Ceiling luminaire with wide beam light distribution |
| Protection class: | IP 20 |
| certifikation mark: | ENEC |
| energy efficiency class: | C |
Login
Zubehör
%
82920.000 MOUNTING FRAME for ERCO luminaires
€19.79*
€21.42*
(7.61% saved)
For flush mounting of luminaires with ceiling aperture 104 x 104mm. Mounting for ceiling thickness of 12.5-25mm. The recessed depth of the luminaire increases by 2mm. Manufacturer: ERCOMaterial: polymer, whiteDimensions (mm): 107 x 107Delivery time: 2 Weeks
