33023K3 Recessed LED wall luminaire, graphite
Product information "33023K3 Recessed LED wall luminaire, graphite"
Recessed LED luminaire for walls and staircases with asymmetrical flat beam light distribution for the wide beam and uniform illumination of floor spaces.
The BEGA Tricoat® coating technology - applied to an extremely resistant alloy - ensures the best possible surface protection and outstanding corrosion resistance.
When making the recessed opening, it is advisable to use an installation housing. In addition, plaster frames should be used when luminaires are installed in brickwork or concrete walls that will later be plastered. These items can be separately ordered as accessories.
Manufacturer: BEGA
Material: die cast aluminium, aluminium and stainless steel , BEGA Tricoat® coating technology, colour graphite, safety glass with optical structure, reflector made of pure anodised aluminium

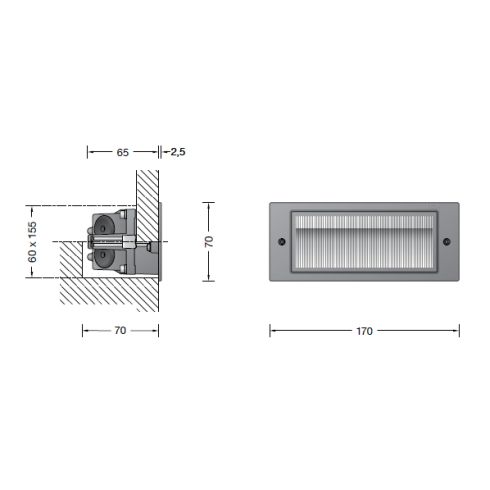

Dimensions (mm): 170 x 70 x 65, recessed opening 155 x 60 x 70
Illuminant: 5.1W LED 3000K
Luminous flux (Lumen): 370
Scope of delivery: incl. illuminant
Delivery time: 1 Week
The BEGA Tricoat® coating technology - applied to an extremely resistant alloy - ensures the best possible surface protection and outstanding corrosion resistance.
When making the recessed opening, it is advisable to use an installation housing. In addition, plaster frames should be used when luminaires are installed in brickwork or concrete walls that will later be plastered. These items can be separately ordered as accessories.
Manufacturer: BEGA
Material: die cast aluminium, aluminium and stainless steel , BEGA Tricoat® coating technology, colour graphite, safety glass with optical structure, reflector made of pure anodised aluminium
Dimensions (mm): 170 x 70 x 65, recessed opening 155 x 60 x 70
Illuminant: 5.1W LED 3000K
Luminous flux (Lumen): 370
Scope of delivery: incl. illuminant
Delivery time: 1 Week
Properties "33023K3 Recessed LED wall luminaire, graphite"
| Color: | graphite |
|---|---|
| Color rendering level: | 1B |
| Lichtfarbe: | warm white |
| Light distribution: | Wall luminaire with deep beam light distribution downwards |
| Protection class: | IP 65 |
| certifikation mark: | ENEC |
| energy efficiency class: | B |
Login
Zubehör
%
Accessory - 10424 Installation housing
€60.00*
€66.28*
(9.47% saved)
Installation housing for recessed installation of luminaires in walls made of concrete or plastered brickwork. Manufacturer: BEGAMaterial: aluminium, glass fiber reinforced synthetics; centre-plate made of styrofoamDimensions (mm): 220 x 81 x 90Delivery time: 1 Week
%
Accessory - 10024 Plaster frame
€38.00*
€41.06*
(7.45% saved)
For the mounting of installation housings in concrete walls, which will be plastered, it is practical to use a plaster frame. Manufacturer: BEGAMaterial: frame aluminium, graphite; centre-plate made of styrofoamDimensions (mm): 155 x 60 x 35Delivery time: 1 Week
