24870K3 Recessed ceiling downlight
Product information "24870K3 Recessed ceiling downlight"

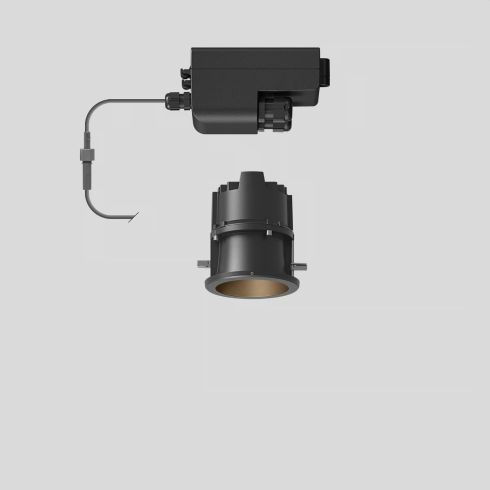

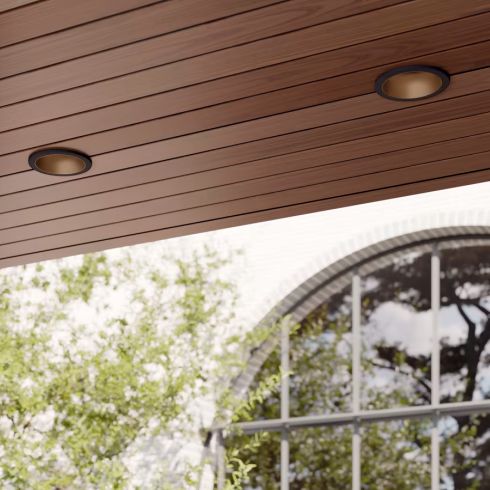

A pleasant and warm effect from the inner surface as well as excellent glare suppression characterise these recessed ceiling downlights with symmetrical wide beam light distribution (half beam angle 43°) for outdoors. The bronze hue sets additional visual highlights. In private and semi-public spaces, for example in outdoor dining areas, these robust and durable luminaires create a special lighting atmosphere. The external power supply units (on/off) are included in the scope of delivery and are connected to the luminaire by means of a convenient plug connector. The electrical connection of the power supply unit can therefore be established before the final installation of the luminaire, if required by the customer.
If needed the concrete installation housing 13609 can be ordered separately.
Manufacturer: BEGA

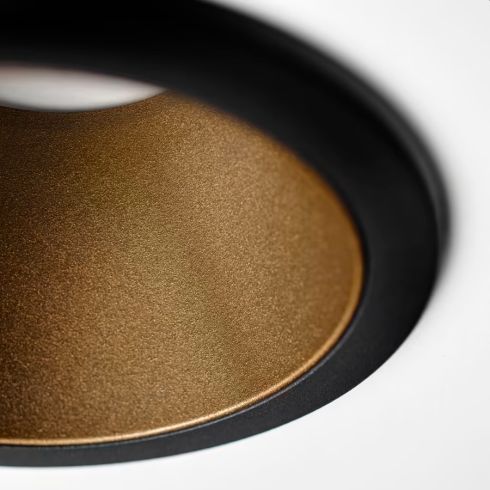

Material: aluminium alloy, aluminium and stainless steel, BEGA Unidure® coating technology, cover ring aluminium alloy, reflector inside hue bronze, translucent synthetic cover, polymer lens, external power supply housing made of polyamide

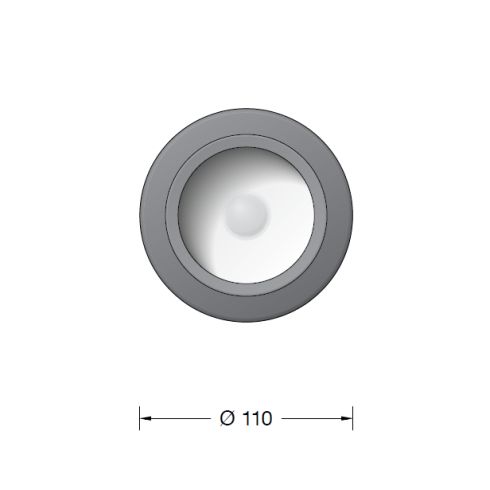

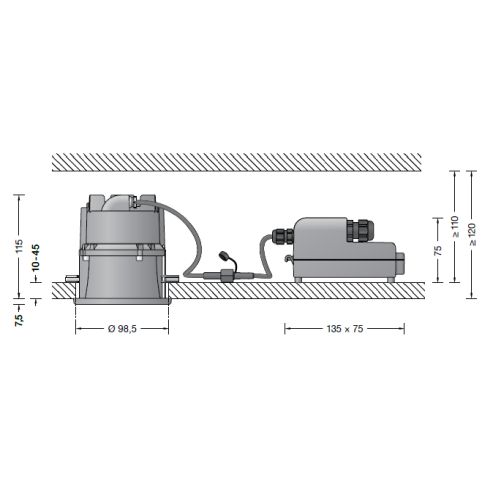

Dimensions (mm): Ø 110 x 7.5, ceiling aperture Ø 98.5, recessed depth required 120, power supply 135 x 75 x 75
Illuminant: 14W LED 3000K
Luminous flux (Lumen): 363
Scope of delivery: incl. illuminant
Delivery time: 2 Weeks
If needed the concrete installation housing 13609 can be ordered separately.
Manufacturer: BEGA
Material: aluminium alloy, aluminium and stainless steel, BEGA Unidure® coating technology, cover ring aluminium alloy, reflector inside hue bronze, translucent synthetic cover, polymer lens, external power supply housing made of polyamide
Dimensions (mm): Ø 110 x 7.5, ceiling aperture Ø 98.5, recessed depth required 120, power supply 135 x 75 x 75
Illuminant: 14W LED 3000K
Luminous flux (Lumen): 363
Scope of delivery: incl. illuminant
Delivery time: 2 Weeks
Properties "24870K3 Recessed ceiling downlight"
| Color: | graphite |
|---|---|
| Color rendering level: | 1B |
| Lichtfarbe: | warm white |
| Light distribution: | Ceiling luminaire with wide beam light distribution |
| Protection class: | IP 65 |
| certifikation mark: | ENEC |
| energy efficiency class: | C |
Login
Zubehör
%

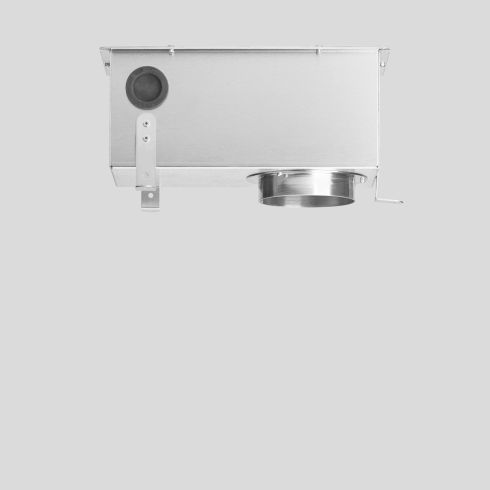

Accessory - 13609 Installation housing
€105.00*
€114.95*
(8.66% saved)
Installation housing with a recessed opening ø 98.5mm for the installation of recessed ceiling luminaires with external power supply unit in concrete ceilings. Three mounting brackets with one hole each ø 5mm for mounting on the casing or reinforcement. Centring plate with threaded rod and wing nuts for fixing the installation housing on the formwork. Two opposite entries for installation conduits max ø 30mm. Manufacturer: BEGAMaterial: aluminiumDimensions (mm): 295 x 165 x 150Delivery time: 2 Weeks
