24677K3 Recessed ceiling luminaire · Downlight
Product information "24677K3 Recessed ceiling luminaire · Downlight"

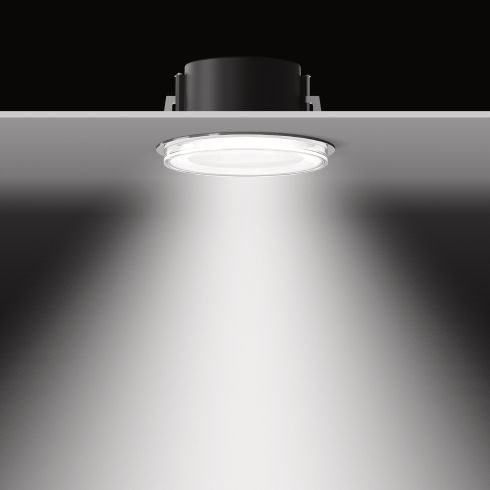

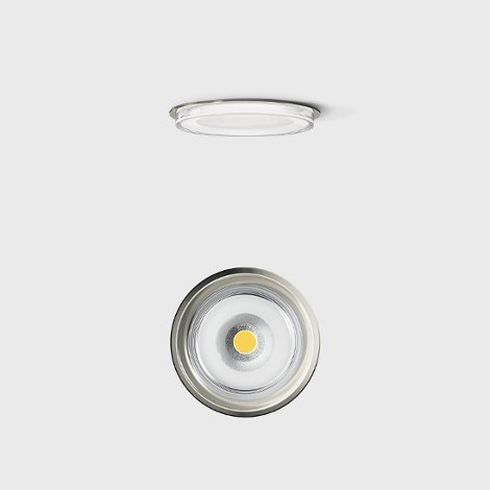

Recessed LED ceiling downlight for installation in suspended ceilings. Using the appropriate installation housing 10441 which can be ordered separately, the luminaire is also suitable for installation in concrete ceilings. The crystal glass projecting beyond the ceiling trim ring has a partial matt finish on the inside for optimum glare suppression and directs a part of the light sideways onto the ceiling. This creates additional visual comfort and a brilliant appearance through the intensity of the horizontal illuminance. Half beam angle 43°.
The external power supply unit (DALI controllable) is included in the scope of delivery and is connected to the luminaire by means of a convenient plug connector. The electrical connection of the power supply unit can therefore be established before the final installation of the luminaire, if required by the customer.
Manufacturer: BEGA
Material: cast aluminium, aluminium and stainless steel, trim ring made of stainless steel, crystal glass, partially frosted, reflector made of pure anodised aluminium, silicone diffusing lens, BEGA Constant Optics ®
Dimensions (mm): Ø 155 x 90, ceiling aperture Ø 128, recessed depth required 80, power supply 150 x 75 x 75, required clearance for the power supply unit above ceiling 90
Illuminant: 15.5W LED 3000K
Luminous flux (Lumen): 850
Scope of delivery: incl. illuminant
Delivery time: 2 Weeks
The external power supply unit (DALI controllable) is included in the scope of delivery and is connected to the luminaire by means of a convenient plug connector. The electrical connection of the power supply unit can therefore be established before the final installation of the luminaire, if required by the customer.
Manufacturer: BEGA
Material: cast aluminium, aluminium and stainless steel, trim ring made of stainless steel, crystal glass, partially frosted, reflector made of pure anodised aluminium, silicone diffusing lens, BEGA Constant Optics ®
Dimensions (mm): Ø 155 x 90, ceiling aperture Ø 128, recessed depth required 80, power supply 150 x 75 x 75, required clearance for the power supply unit above ceiling 90
Illuminant: 15.5W LED 3000K
Luminous flux (Lumen): 850
Scope of delivery: incl. illuminant
Delivery time: 2 Weeks
Properties "24677K3 Recessed ceiling luminaire · Downlight"
| Color: | stainless steel |
|---|---|
| Color rendering level: | 1B |
| Lichtfarbe: | warm white |
| Light distribution: | Ceiling luminaire with direct light distribution and additional light corona |
| Protection class: | IP 65 |
| certifikation mark: | ENEC |
| energy efficiency class: | B |
Login
Zubehör
%
Accessory - 10441 Installation housing
€131.00*
€145.30*
(9.84% saved)
Installation housing with a recess opening ø 128mm for mounting recessed ceiling luminaires in concrete ceilings. 4 fixing straps with 1 hole ø 5mm each and 1 threaded rod with wing screw for fixing at the sheeting. 2 opposite insertions for installation conduits of up to ø 30mm. Centre-plate with concentric fixing hole ø 5mm to calibrate the luminaire. Manufacturer: BEGAMaterial: aluminiumDimensions (mm): Ø 240 x 200
