24274K3 Recessed LED ceiling downlight, stainless steel
Product information "24274K3 Recessed LED ceiling downlight, stainless steel"
Recessed ceiling luminaire with symmetrical narrow beam light distribution (half beam angle 16°). Compact downlight with BEGA Hybrid Optics® for optimal light control. This is made possible by optimal refraction and reflection by precise reflectors with a surface made of pure aluminium, and lenses made of ultra-clear silicone. The resulting optical systems are highly efficient, low-loss, and optimally suppress glare despite their very compact dimensions. The external power supply unit (DALI controllable) is included in the scope of delivery. For installation in concrete ceilings the installation housing BEGA 10440 is available as an accessory.
Manufacturer: BEGA
Material: cast aluminium, aluminium and stainless steel, cover ring stainless steel, clear safety glass, optical silicone lens · BEGA Hybrid Optics®, reflector surface made of pure aluminium

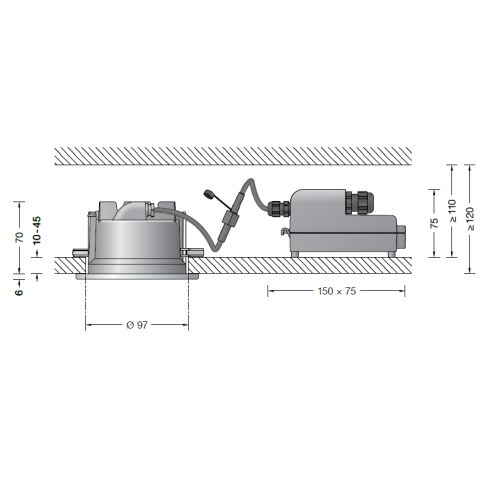

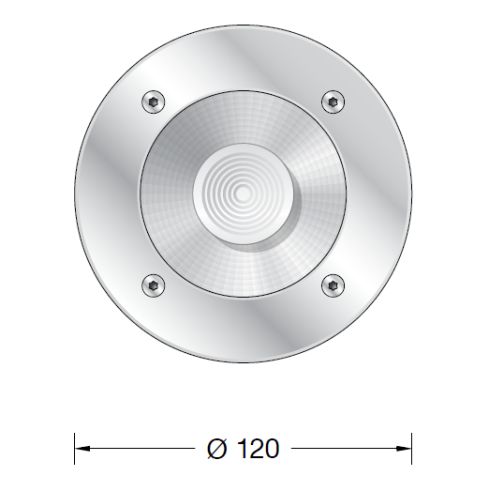

Dimensions (mm): Ø 120, power supply 150 x 75 x 75, recessed opening Ø 97, recessed depth min. 100
Illuminant: 7.1W LED 3000K
Luminous flux (Lumen): 785
Scope of delivery: incl. illuminant
Delivery time: 1 Week
Manufacturer: BEGA
Material: cast aluminium, aluminium and stainless steel, cover ring stainless steel, clear safety glass, optical silicone lens · BEGA Hybrid Optics®, reflector surface made of pure aluminium
Dimensions (mm): Ø 120, power supply 150 x 75 x 75, recessed opening Ø 97, recessed depth min. 100
Illuminant: 7.1W LED 3000K
Luminous flux (Lumen): 785
Scope of delivery: incl. illuminant
Delivery time: 1 Week
Properties "24274K3 Recessed LED ceiling downlight, stainless steel"
| Color: | stainless steel |
|---|---|
| Color rendering level: | 1B |
| Lichtfarbe: | warm white |
| Light distribution: | Not very wide beam downwards |
| Protection class: | IP 65 |
| certifikation mark: | ENEC |
| energy efficiency class: | D |
Login
Zubehör
Accessory - 10440 Installation housing
€115.00*
Installation housing with a recess opening ø 98mm for mounting recessed ceiling luminaires in concrete ceilings. 4 fixing straps with 1 hole ø 5mm each and 1 threaded rod with wing screw for fixing at the sheeting. 2 opposite insertions for installation conduits of up to ø 30mm. Centre-plate with concentric fixing hole ø 5mm to calibrate the luminaire. Manufacturer: BEGAMaterial: aluminiumDimensions (mm): Ø 200 x 170Delivery time: 1 Week
