13566 - BEGA Plug & Play 48V Smart Tower with connecting cable and mains plug
Product information "13566 - BEGA Plug & Play 48V Smart Tower with connecting cable and mains plug"
The Smart Tower forms the basis of the BEGA Plug & Play system. It is the intelligent control centre of the system and at the same time provides the necessary 48-V operating voltage. Luminaires as well as one or more Smart Extenders can be connected to the four plug contacts of the Smart Tower. The maximum connected wattage of all luminaires connected to a Smart Tower is 50 watts. Each of the four outputs can be switched and dimmed individually. Configuration is carried out via the convenient BEGA Smart app (for iOS and Android). To operate the LED light system, the remote controls PRO (13 569) or ONE (10 526) are recommended.
Zigbee 3.0 and Bluetooth 4.2. The Zigbee radio range between the individual devices is max. 30 meters, but the ambient conditions play a decisive role.
Manufacturer: BEGA
Material: glass fibre reinforced synthetic material, colour graphite

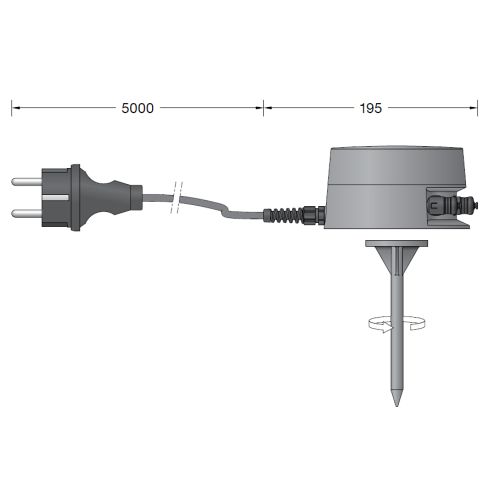

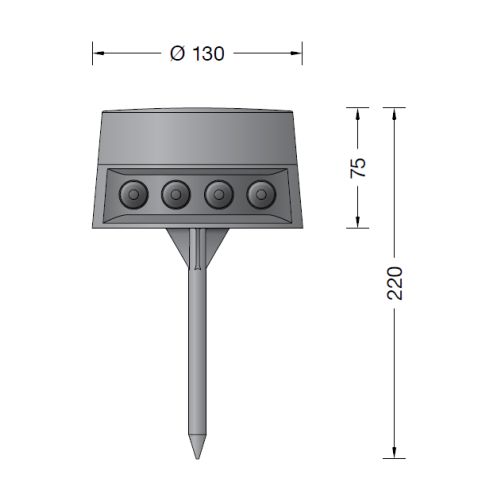

Dimensions (mm): Ø 130 x 75, connecting cable 5000
Delivery time: 1 Week
Zigbee 3.0 and Bluetooth 4.2. The Zigbee radio range between the individual devices is max. 30 meters, but the ambient conditions play a decisive role.
Manufacturer: BEGA
Material: glass fibre reinforced synthetic material, colour graphite
Dimensions (mm): Ø 130 x 75, connecting cable 5000
Delivery time: 1 Week
Properties "13566 - BEGA Plug & Play 48V Smart Tower with connecting cable and mains plug"
| Color: | graphite |
|---|---|
| Protection class: | IP 65 |
